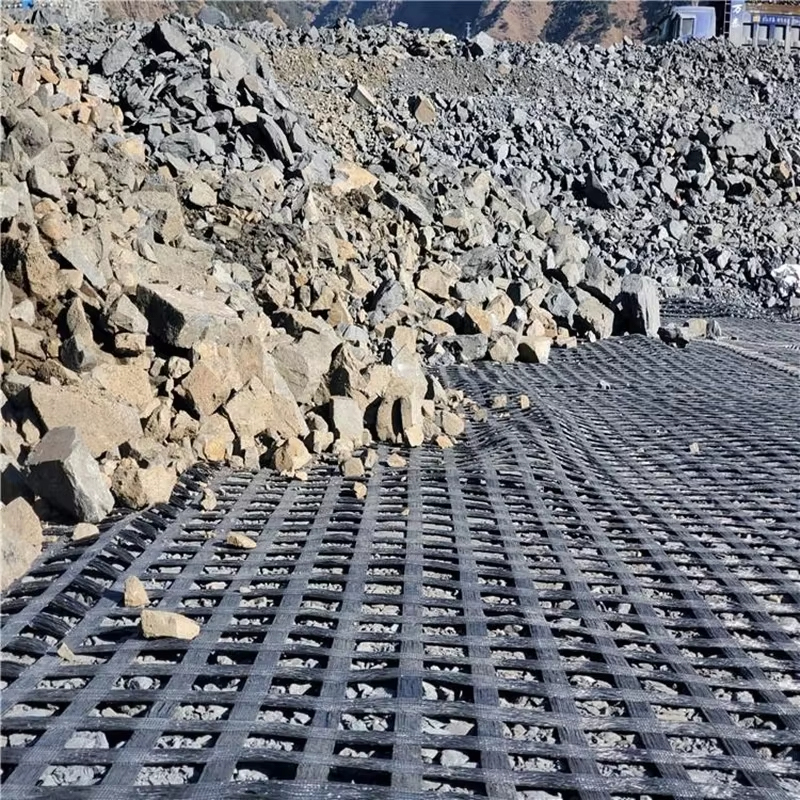

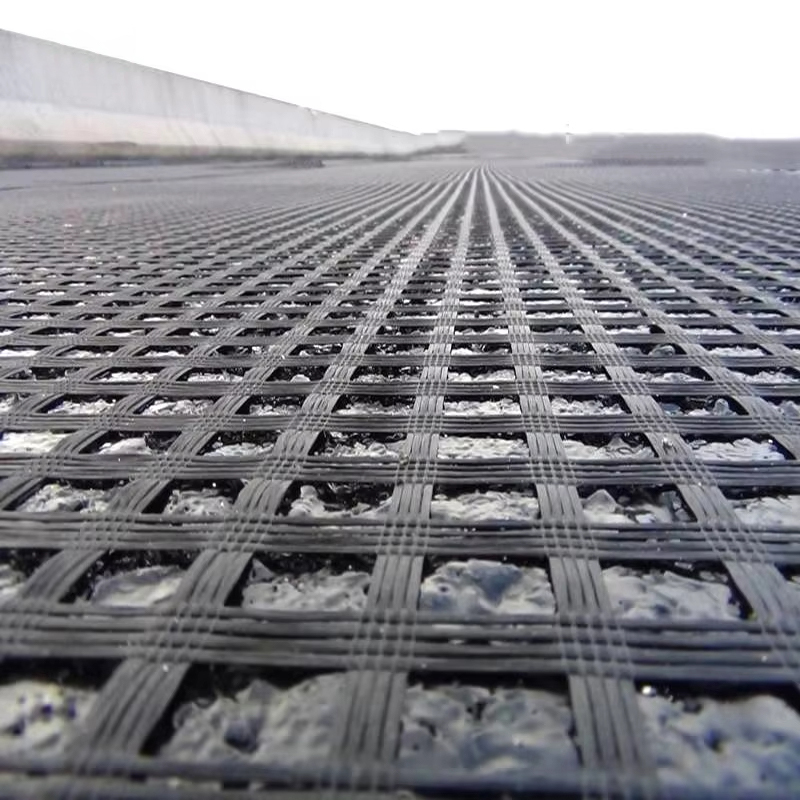

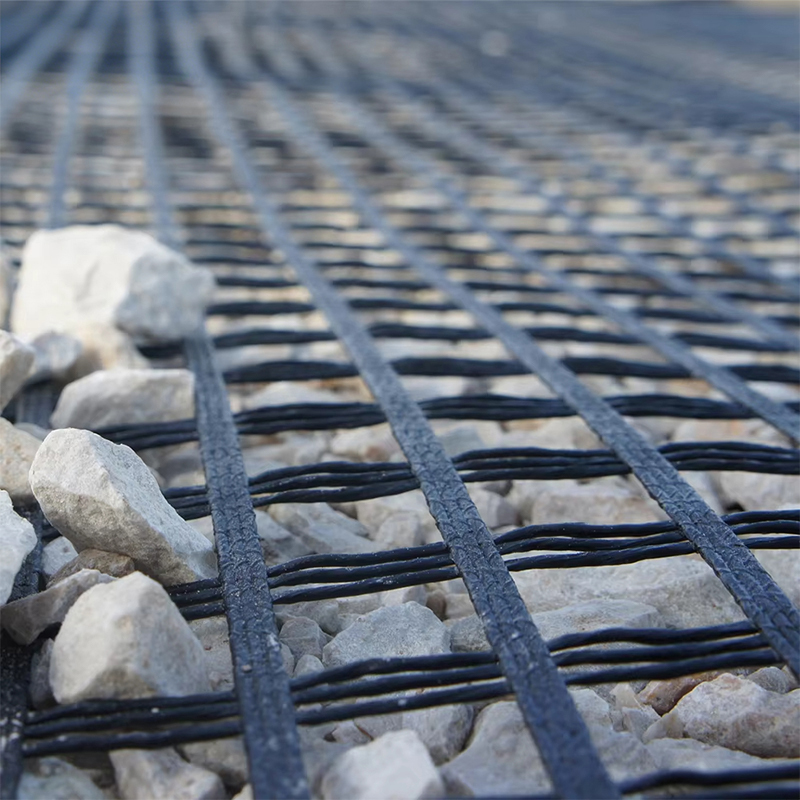

Warp-knitted polyester geogrid

Warp-knitted polyester geogrid
Color: Black
Type: Geogrid
Width: 1-6 meters

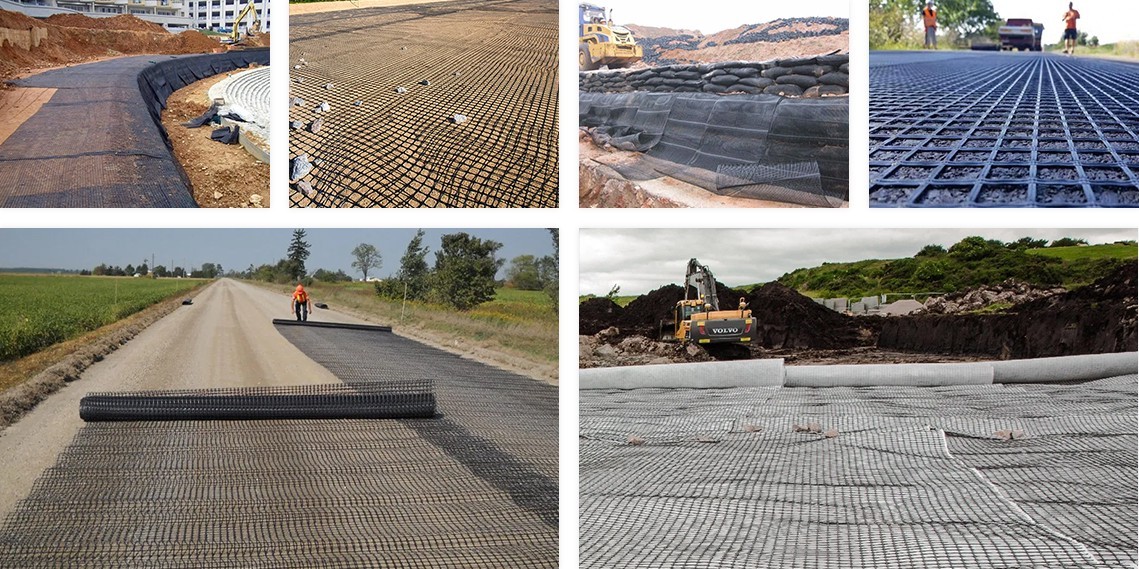

Applications: Road construction | Soft soil reinforcement
Phone:+86 18053131421
Email:order@zonghuigeo.com
WhatsApp:+86 18053131421
Add:Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province
Inquire Now

◉ PRODUCT SPECIFICATION

Specifications

GSJ30-30

GSJ35-35

GSJ50-50

GSJ80-80

GSJ100-100

GSZ125-125

GSZ150-150

Limit tensile strength ( MD or TD)kn/m

≥30

≥35

≥50

≥80

≥100

≥125

≥150

The elongation at nominal tensile strengch ( MD or TD )%

≤13

≤13

≤13

≤13

≤13

≤14

≤14

The elongation at 2% nominal tensile srengh ( MD or TD )kn/m

≥10

≥12

≥17

≥28

≥35

≥43

≥52

The tensile force at 5% elongation ( MD or TD )kn/m

≥20

≥24

≥34

≥56

≥70

≥86

≥104

Warp-knitted polyester geogrid


Warp-knitted polyester geogrid


Shandong Zonghui Trading Co., Ltd. is one of China's leading geosynthetic material manufacturers. The company produces a range of environmentally friendly geosynthetics, including geomembranes, geotextiles, geogrids, 3D soil stabilization mats, geocells, geonets, geomembranes, PP/PE woven fabrics, weed control fabrics, waterproofing boards, GCL bentonite waterproofing blankets, 3D composite drainage nets, eco-bags, (storage) drainage boards, HDPE pipes, and more. Whether you are involved in environmental protection projects, infrastructure construction, civil engineering, or any other field requiring geosynthetic material solutions, Zonghui can provide support. Welcome to contact us and become our partner.

Warp-knitted polyester geogrid

The above information is for reference only. For more information, please feel free to contact us. We will respond promptly, answer your questions patiently, and serve you wholeheartedly.

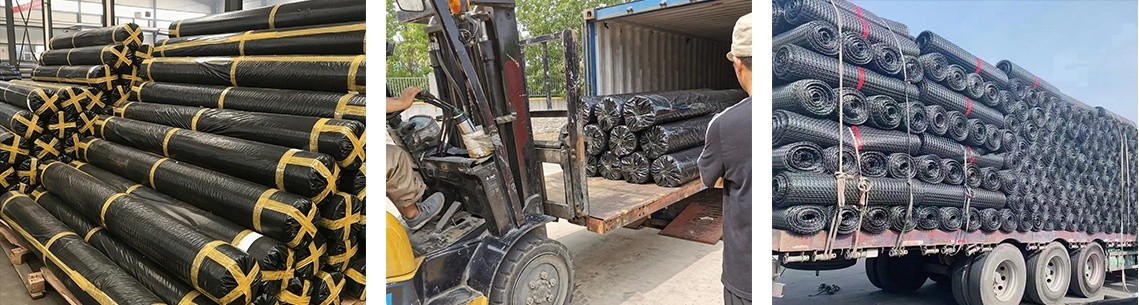

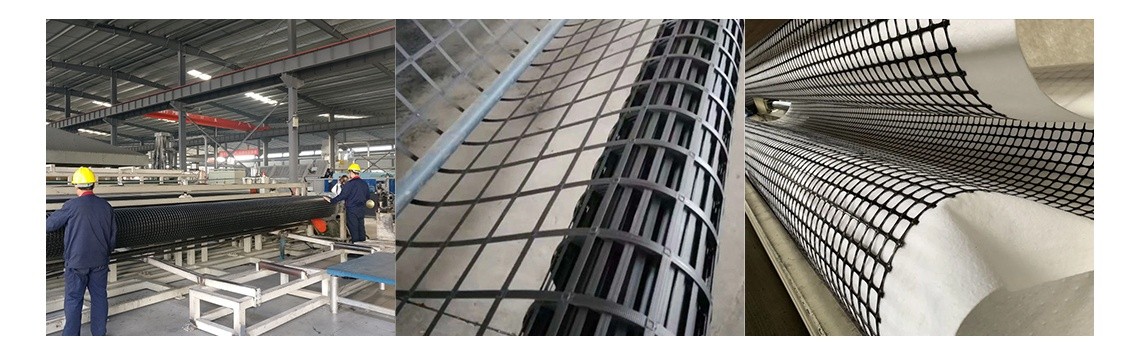

◉ PRODUCTION AND WAREHOUSING

Warp-knitted polyester geogrid
