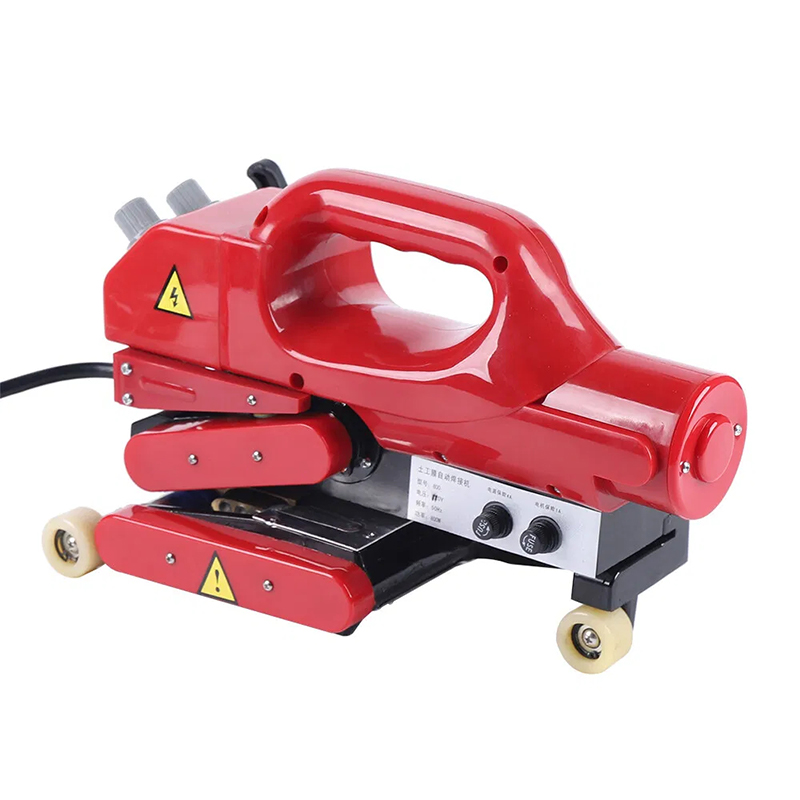

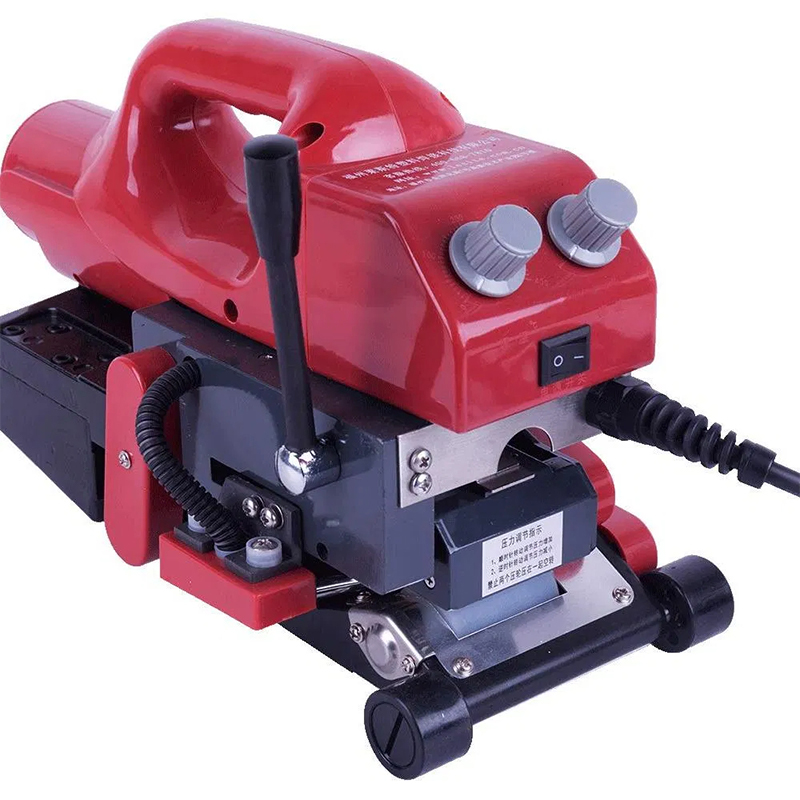

Hot wedge welding machine

Hot wedge welding machine
Name: Geomembrane Welding Machine
Warranty Period: 1 year
Use: Suitable for welding HDPE, PP, PVC, and other materials.
Phone:+86 18053131421
Email:order@zonghuigeo.com
WhatsApp:+86 18053131421
Add:Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province
Inquire Now

◉ PRODUCT SPECIFICATION

Voltage

220V/110V

Frequency

50/60Hz

Power

1800W

Welding Speed

0.5-5 m/min

The temperature of Heating up

0~450°C

The thickness of welding material

1.0mm~3.0mm

Welding width

15mm×2

Interior Cavity

15mm

Seam strength

≥85% base material

Overlap width

12cm

Weight

13kg

Insulation class

class II

SWT-NS900 Parameter Settings

Reference Speed

Reference Temperature

Reference Pressure Value (When upper and lower pressure roller in 0 pressure state)

HDPE 1.0mm

3.0-4.5

380-430

Counterclockwise adjustment is recommended at 4

HDPE 1.5mm

2.5-4.0

380-430

Counterclockwise adjustment is recommended at 3

HDPE 2.0mm

2.0-3.5

380-430

Counterclockwise adjustment is recommended at 2

HDPE 3.0mm

1.5-2.5

380-430

Clockwise adjustment is recommended to be 1-2

焊接机详情_05

详情_11

焊接机详情_14

The above information is for reference only. For more information, please feel free to contact us. We will respond promptly, answer your questions patiently, and serve you wholeheartedly.
