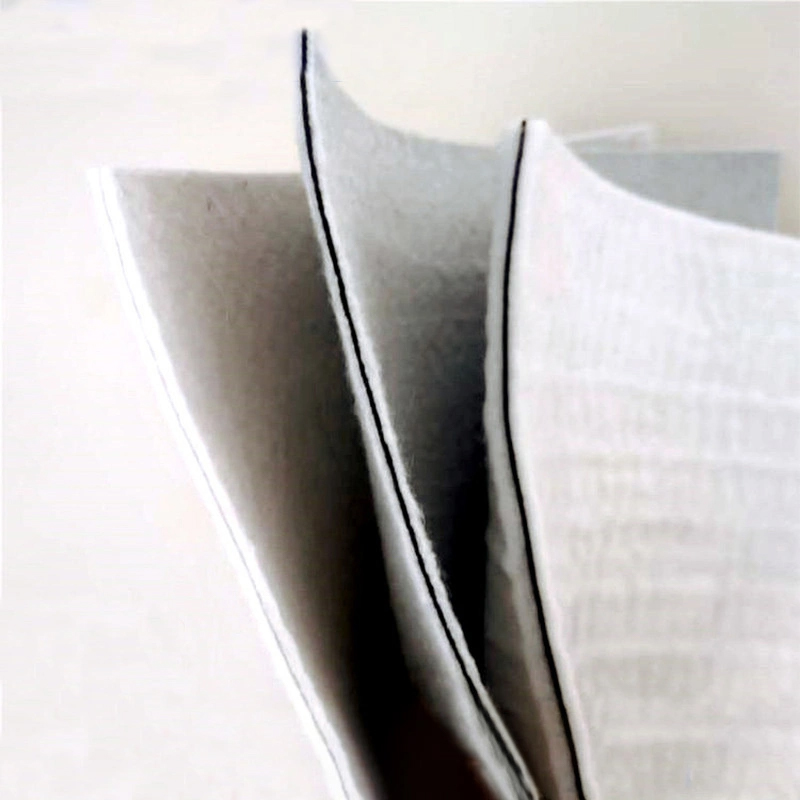

Geocomposite Drainage Layer

Geocomposite Drainage Layer
Product Name: Composite Geomembrane
Function: Double-sided protection, drainage, and isolation
Material: Two layers of geotextile + one layer of geomembrane
Phone:+86 18053131421
Email:order@zonghuigeo.com
WhatsApp:+86 18053131421
Add:Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province
Inquire Now

◉ PRODUCT SPECIFICATION

Mass per unit area(g/m² )

400

500

600

700

800

900

1000

1100

Commonly used PE film thickness mm

0.2-0.35

0.3-0.6

Common Specification

geotextile +geomembrane

150/0.25

200/0.3

300/0.3

300/0.4

300/0.5

400/0.5

400/0.6


geotextile+geomembrane+geotextile

100/0.2/100

100/0.3/100

150/0.3/150

200/0.3/200

200/0.4/200

200/0.5/200

250/0.5/250


Nominal breaking strength/(KN/m)

5

7.5

10

12

14

16

18

20

Longitudinal and transverse rupture strength/(KN/m)≥

5

7.5

10

12

14

16

18

20

Longitudinal and transverse standard strength corresponding to the elongation %

30-100

CBR Top Break Strength/KN ≥

1.1

1.5

1.9

2.2

2.5

2.8

3

3.2

Vertical and horizontal tearing/KN ≥

0.15

0.25

0.32

0.4

0.48

0.56

0.62

0.7

Hydrostatic pressure resistance/ MPa


0.2

0.3

0.4

0.5

0.6

0.7

0.8

1

geotextile +geomembrane

0.4

0.5

0.6

0.8

1

1.2

1.4

1.6

geotextile+geomembrane+geotextile

0.5

0.6

0.8

1

1.2

1.4

1.6

1.8

Peel strength/(N/cm)

6

Vertical permeability coefficient/(cm/s)

As designed or contracted

Width deviation %

-1


Geocomposite membranes are primarily used in engineering scenarios requiring a combination of functions such as waterproofing, drainage, reinforcement, and isolation.

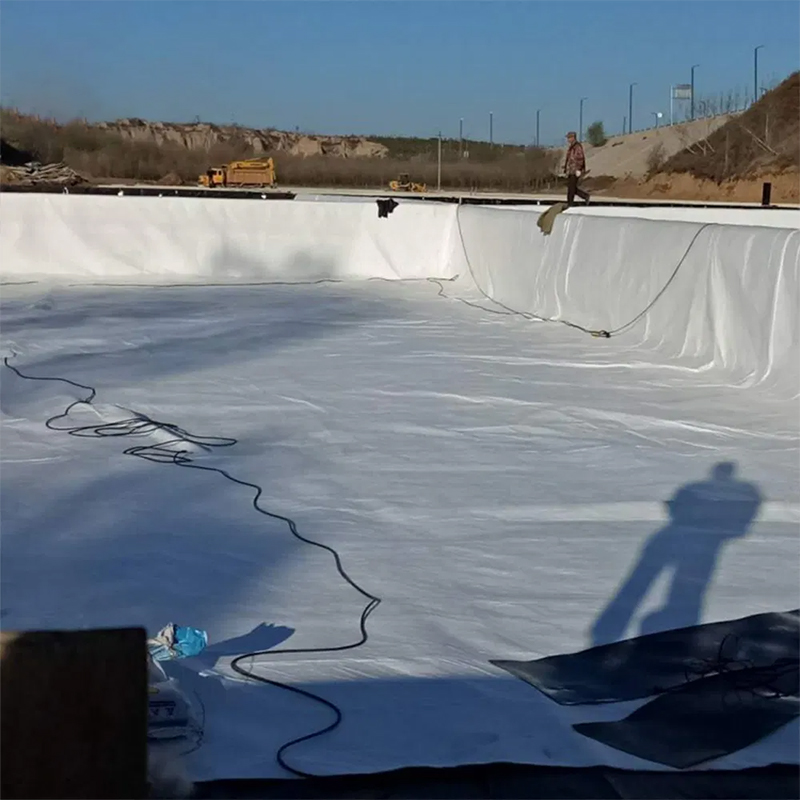

Water Conservancy and Environmental Protection Engineering (Waterproofing)

Used in lining systems for artificial lakes, reservoirs, rivers, sewage treatment ponds, and landfills. The geomembrane provides waterproofing, while the geotextile protects the membrane and facilitates drainage.

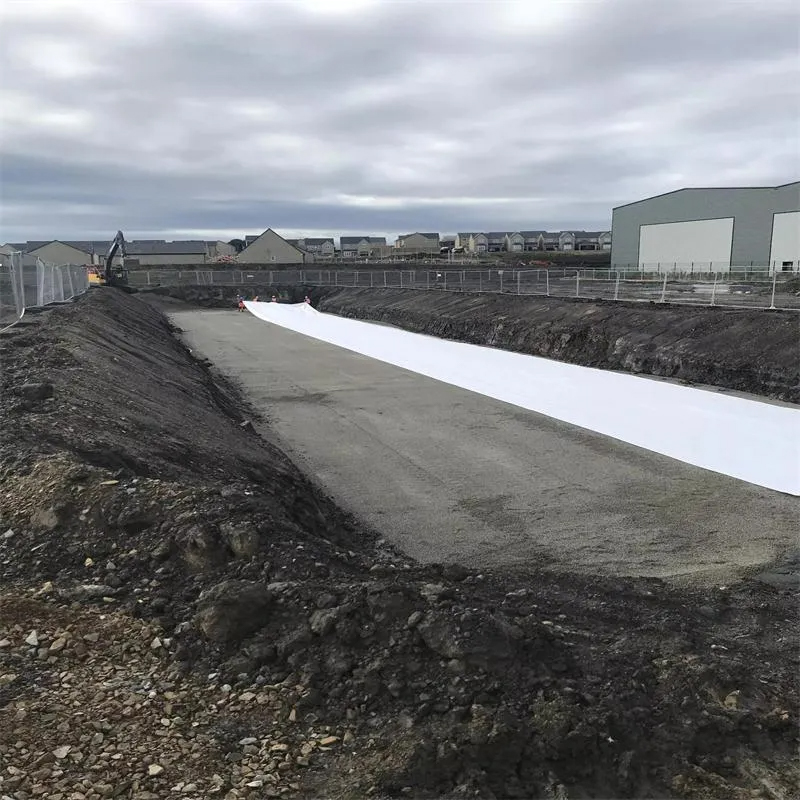

Transportation Infrastructure Reinforcement and Drainage

Used in roadbeds for highways, railways, and airport runways. It serves to isolate soil layers, prevent mud pumping, provide reinforcement, and facilitate lateral drainage.

Civil Engineering Waterproofing and Protection

Used as a waterproof and drainage layer in tunnels, underground structures, and rooftop gardens, or as a waterproof and filter structure within earth dams and retaining walls.

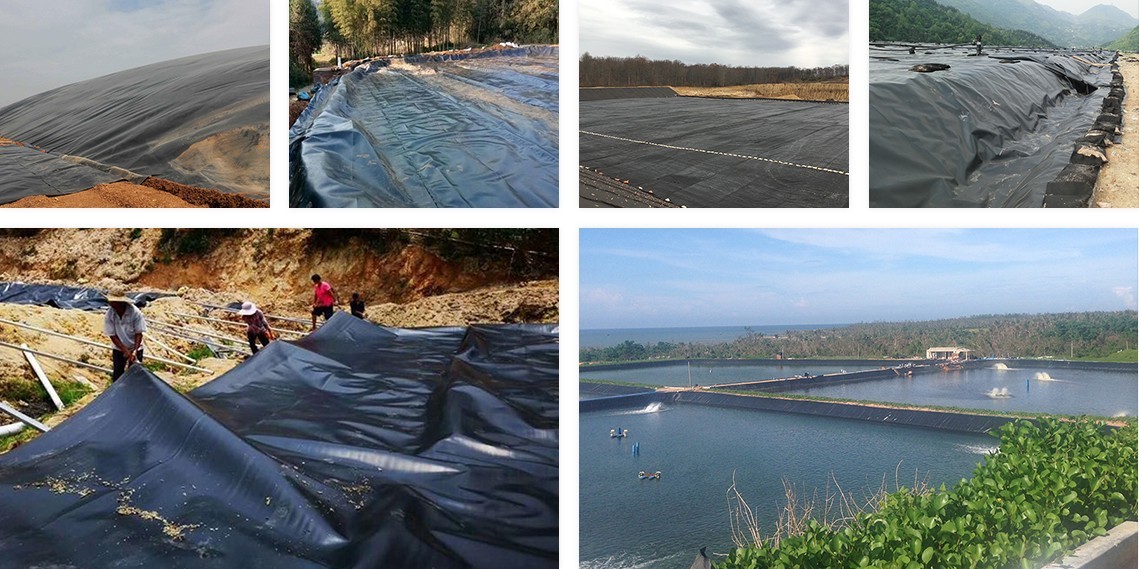

详情_05

详情_11

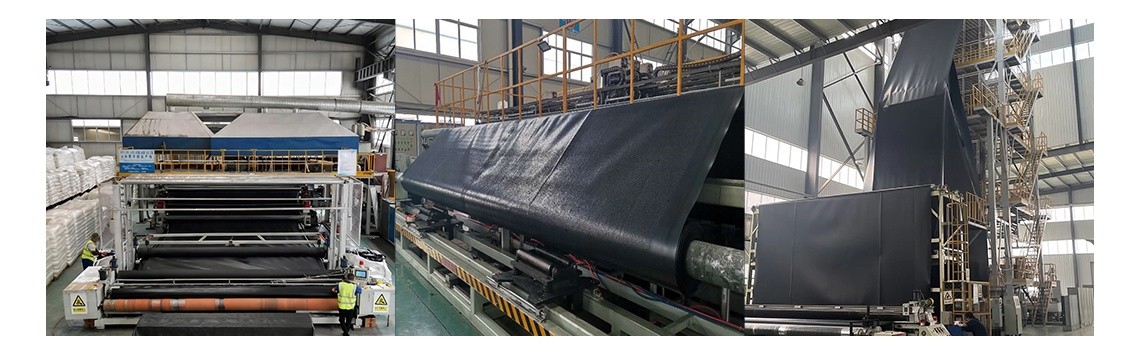

详情_14

The above information is for reference only. For more information, please feel free to contact us. We will respond promptly, answer your questions patiently, and serve you wholeheartedly.

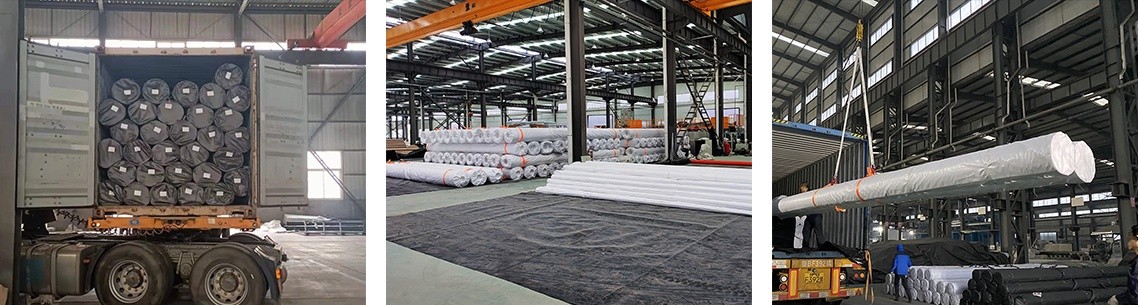

◉ PRODUCTION AND WAREHOUSING
