PP non-woven geotextile

›

‹

  • PP non-woven geotextile
  • PP non-woven geotextile
  • PP non-woven geotextile
  • PP non-woven geotextile

›

PP non-woven geotextile
Material:PP & PET
Type:Non-Woven Geotextiles
Model Number:100gsm-1500gsm
Application:Separation/filtration/drainage/reinforcement/protection/liquid barrier
Phone：+86 18053131421
Email：order@zonghuigeo.com
WhatsApp：+86 18053131421
Add：Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province
Inquire Now

◉ PRODUCT SPECIFICATION

Technical specifications for short fiber needle punched nonwoven geotextiles (GB/T 17638-1998)


Item

Value

100

150

200

250

300

350

400

450

500

600

800

Notes

Weight variation%

-8

-8

-8

-8

-7

-7

-7

-7

-6

-6

-6


Thickness mm≥

0.9

1.3

1.7

2.1

2.4

2.7

3.0

3.3

3.6

4.1

5.0


Width Variation %

-0.5


Breakinq Strenath KN / m≥

2.5

4.5

6.5

8.0

9.0

11.5

12.0

14.0

16.0

19.0

25.0

MD and  TD

Elongation at Break %

25~100


CBR Mullen Burst Strenth KN≥

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.2

4.0


Sieve Size 90 O 95 mm

0.07~0.2


Vertical Permeability Coeficient cm / s

K*(10-1~10-3)


K=1.0~9.9cm/s

Tear Strengh KN≥

0.08

0.12

0.16

0.20

0.24

0.28

0.33

0.38

0.42

0.46

0.6

MD and  TD

PP non-woven geotextile


PP non-woven geotextile


Shandong Zonghui Trading Co., Ltd. is one of China's leading geosynthetic material manufacturers. The company produces a range of environmentally friendly geosynthetics, including geomembranes, geotextiles, geogrids, 3D soil stabilization mats, geocells, geonets, geomembranes, PP/PE woven fabrics, weed control fabrics, waterproofing boards, GCL bentonite waterproofing blankets, 3D composite drainage nets, eco-bags, (storage) drainage boards, HDPE pipes, and more. Whether you are involved in environmental protection projects, infrastructure construction, civil engineering, or any other field requiring geosynthetic material solutions, Zonghui can provide support. Welcome to contact us and become our partner.

PP non-woven geotextile

The above information is for reference only. For more information, please feel free to contact us. We will respond promptly, answer your questions patiently, and serve you wholeheartedly.

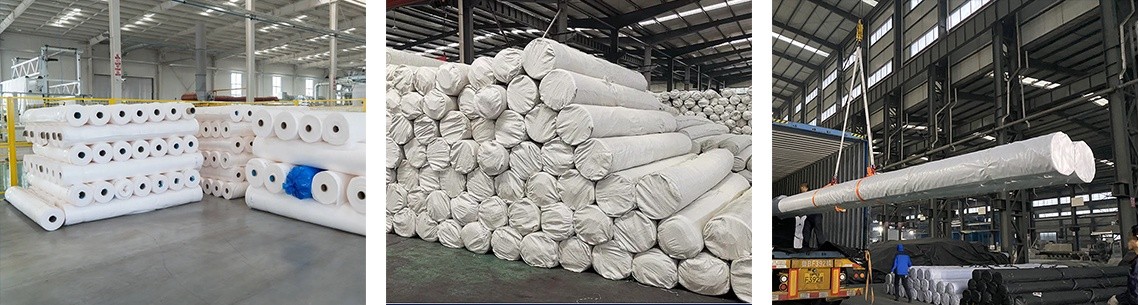

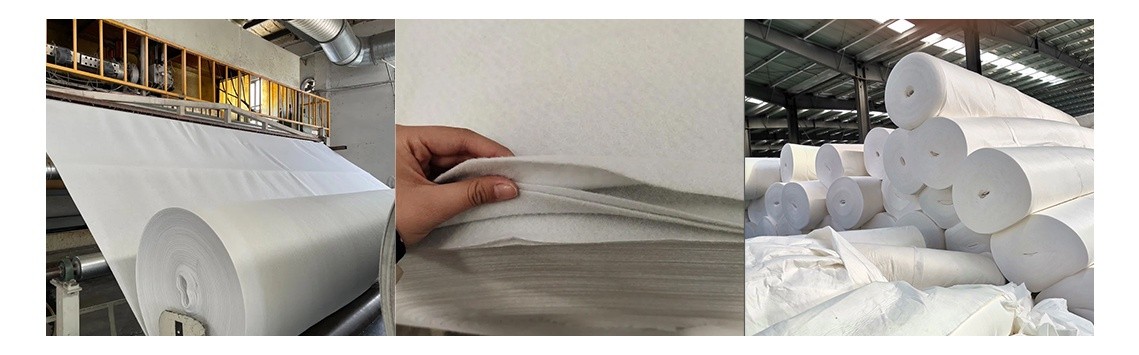

◉ PRODUCTION AND WAREHOUSING
